Gekko™ – 3D and Helical Detachable Neurovascular Coils for Aneurysm Embolization | Optimed | Zylox-Tonbridge
Description
Gekko™ Detachable Coil System is an endovascular detachable platinum coil system designed for the embolization of intracranial aneurysms and other neurovascular abnormalities.
The system includes 3D (Complex) and 2D (Helical) coil configurations, available in a comprehensive range of diameters and lengths to support the different stages of aneurysm embolization: framing, filling, and finishing.
✅ Key Benefits
-
Two coil configurations: 3D and Helical, designed to accommodate different aneurysm anatomies
-
Enhanced softness and flexibility for conformability to the aneurysm wall
-
Complex 3D structure featuring 25% smaller first and last closed loops, designed to reduce coil herniation
-
Soft helical coils designed to occupy available spaces within the aneurysm sac
-
Progressively increasing primary coil outer diameters, selected according to coil size to optimize packing volume and stability
-
Short, flexible junction designed to reduce microcatheter kickout during delivery
-
Multi-segment delivery wire combining flexibility and pushability
-
Two-step mechanical detachment mechanism using bending and pulling
⚙️ Technical Features
-
Coil material: Platinum
-
Coil configurations: 3D (Complex) and 2D (Helical)
-
System type: Detachable coils for endovascular embolization
-

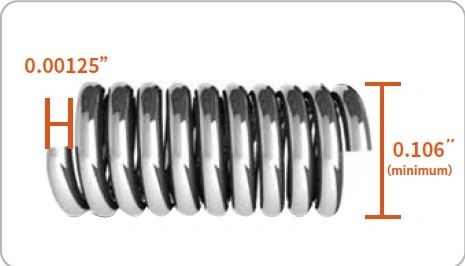

Minimum primary wire diameter: 0.00125″
-
Primary coil outer diameter: 0.27–0.37 mm, depending on coil size
-
Delivery system: Multi-segment delivery wire incorporating a specially designed hypotube
-
Detachment mechanism: Bending of the indicator tube, followed by separation and pulling
-
Available configurations: Multiple diameter and length combinations for framing, filling, and finishing
🩺 Clinical Indications
Gekko™ Detachable Coil System is intended for endovascular embolization of:
-
Intracranial aneurysms – endovascular occlusion of the aneurysm sac
-
Arteriovenous malformations (AVMs) – embolization of abnormal neurovascular connections
-
Arteriovenous fistulas (AVFs) – embolization of abnormal vascular communications
📏 Available Sizes
-
3D coil diameters: Ø 1–25 mm
-
Helical coil diameters: Ø 1–20 mm
-
3D coil lengths: 2–50 cm
-
Helical coil lengths: 1–50 cm
-
Primary coil outer diameter: 0.27–0.37 mm
Diameters and lengths are available in specific combinations according to the selected model.
📦 Available Configurations

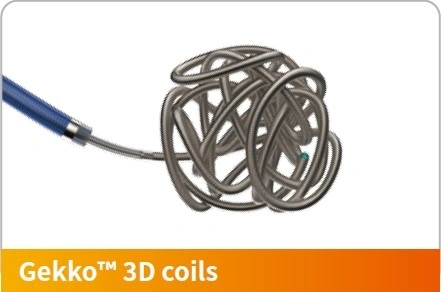

Gekko™ 3D (Complex) Coils
Three-dimensional coils designed to establish a supporting framework within the aneurysm sac.
-
Complex three-dimensional geometry
-
First and last closed loops are 25% smaller
-
Randomized open-loop design for conformability to irregular aneurysm shapes
-
Product codes from the AEC-…-S series

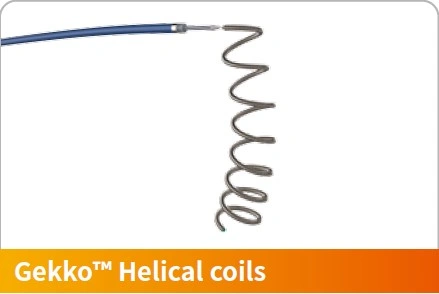

Gekko™ Helical (2D) Coils
Helical coils designed to conform to available spaces within the aneurysm sac.
-
Flexible helical configuration
-
Designed to adapt to the aneurysm's internal geometry
-
Configurations suitable for filling and finishing
-
