Description

With 6 holes, small size (5mm), medium (9mm), large (13mm), thickness 0.6 / 0.7 / 0.8mm, the plate is reversible (the screws can be placed on any of the faces of the plate), material: Titanium, the plate is moldable intraoperatively.

Orthognathic surgery

BETA system

The BETA system is specifically designed for orthognathic surgery. With its low interface and semi rigid fixation this is the standard for many maxillofacial surgeons. The system is simple, efficient, multipurpose, extremely user friendly and reliable.

USES

• Orthognathic surgery: LeFort I osteotomies, sagittal split osteotomies and genioplasties
• Midface trauma and reconstruction
• Selective mandibula fracture

FEATURES

• The screws, bone plates and instruments of the ALFA and BETA system are interchangeable.
• Innovative self-tapping and self-drilling screw thread, created for an excellent grip on the bone.
• Uniquely designed  and controlled screw/blade connections with a perfect self-retaining mechanism.

• Reversible and preformed plate designs reducing stock and handling time without compromising choice and variety.
• Our large anatomically formed bone plate range offering the surgeon to select the optimal bone plate for each possible indication.
• The screw/plate profile is made as low as possible to provide an optimal patient comfort. The perfect balance between a low profile height and superior strength, ensuring an optimal clinical outcome.

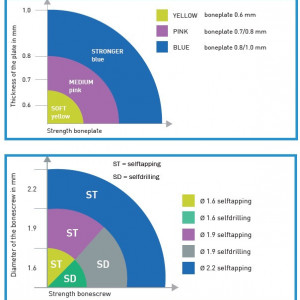

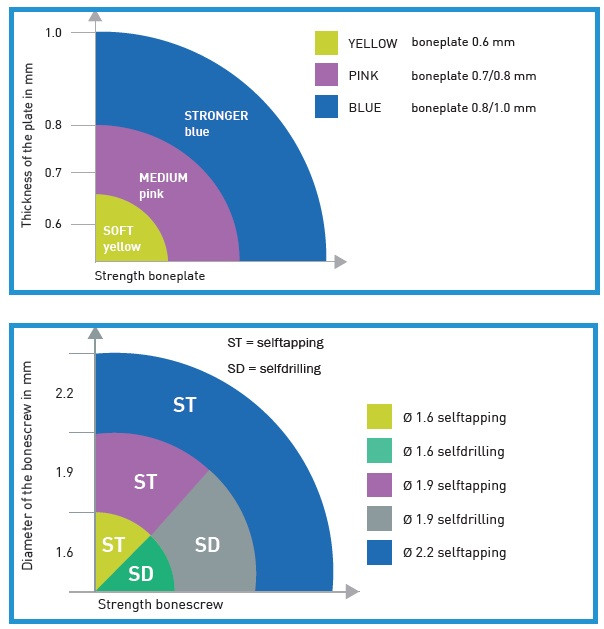

• Gradual color-coded devices for easy and comprehensive implant selection.

DETAILS

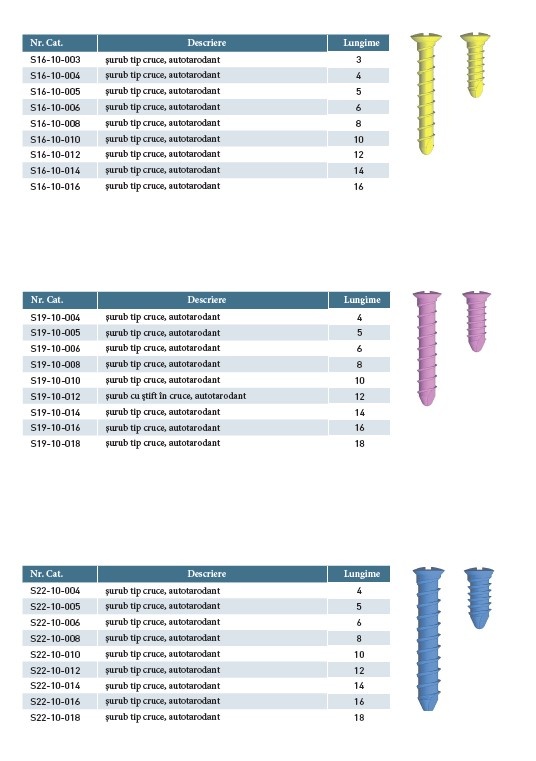

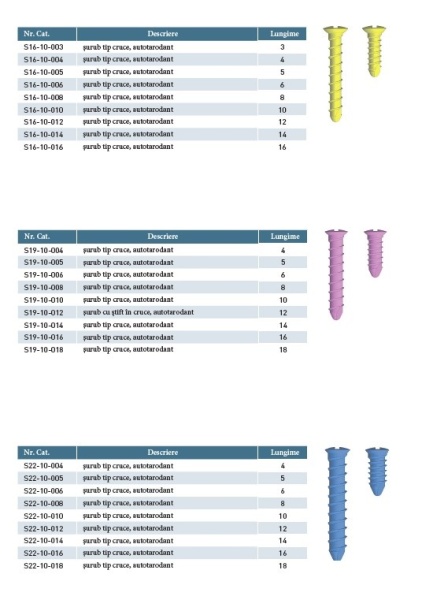

• Selftapping and selfdrilling type screws diameter 1.9 and 2.2 mm
• Boneplates profiles of 0.6 / 0.7 / 0.8 and 1.0mm

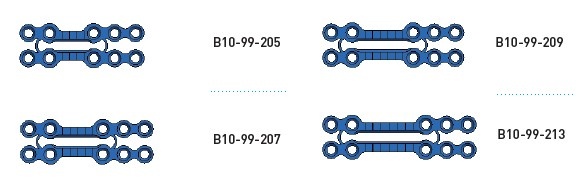

• Etched lines, in mm, on boneplates for easy bending (if applicable)

For more information see the Titamed catalog ( Beta ) >>
